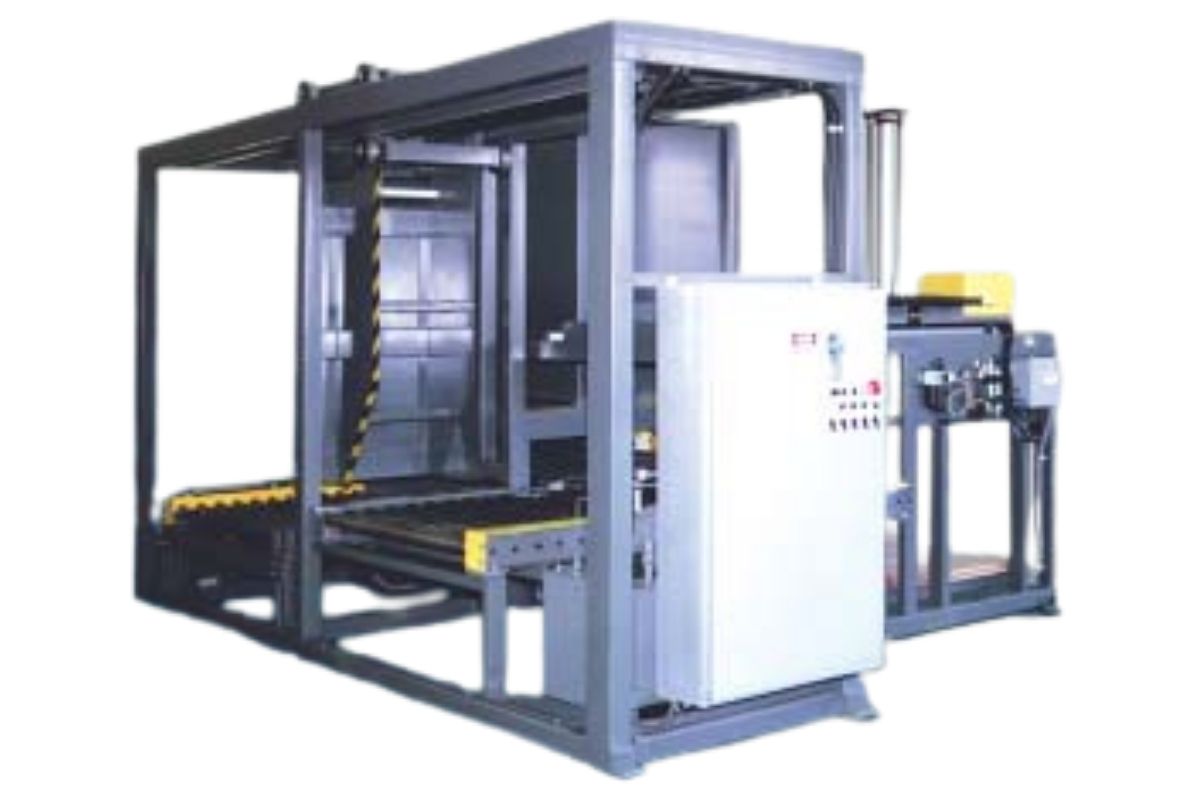

RM-1150B Captive Pallet Board to Pallet Load Transfer System

RM-1150B Captive Pallet Board to Pallet Load Transfer System

The RM-1150B captive board to pallet load transfer system automatically transfers cased product from a plywood board to a shipping pallet.

REQUEST A QUOTE View full details

Product Tour

Specifications

Loading Table Size 40 x 48
Load/Unload Height 24'' / 22''
Controls Lanyard controls
Capacity 4000 lbs
System Pressure 1750
Cycle Rate one per minute
Certifications 0
Motor 10 HP
Power Source 480V 3 PHASE
Anchors 12
Pallet Stacker Capacity 15 pallets
Stripper Plate YES
Operating Length 18'8''
Operating Height 96''
Operating Width 6'5''
