SMHPA-200 Automatic Turntable Stretch Wrapper

SMHPA-200 Automatic Turntable Stretch Wrapper

Description:

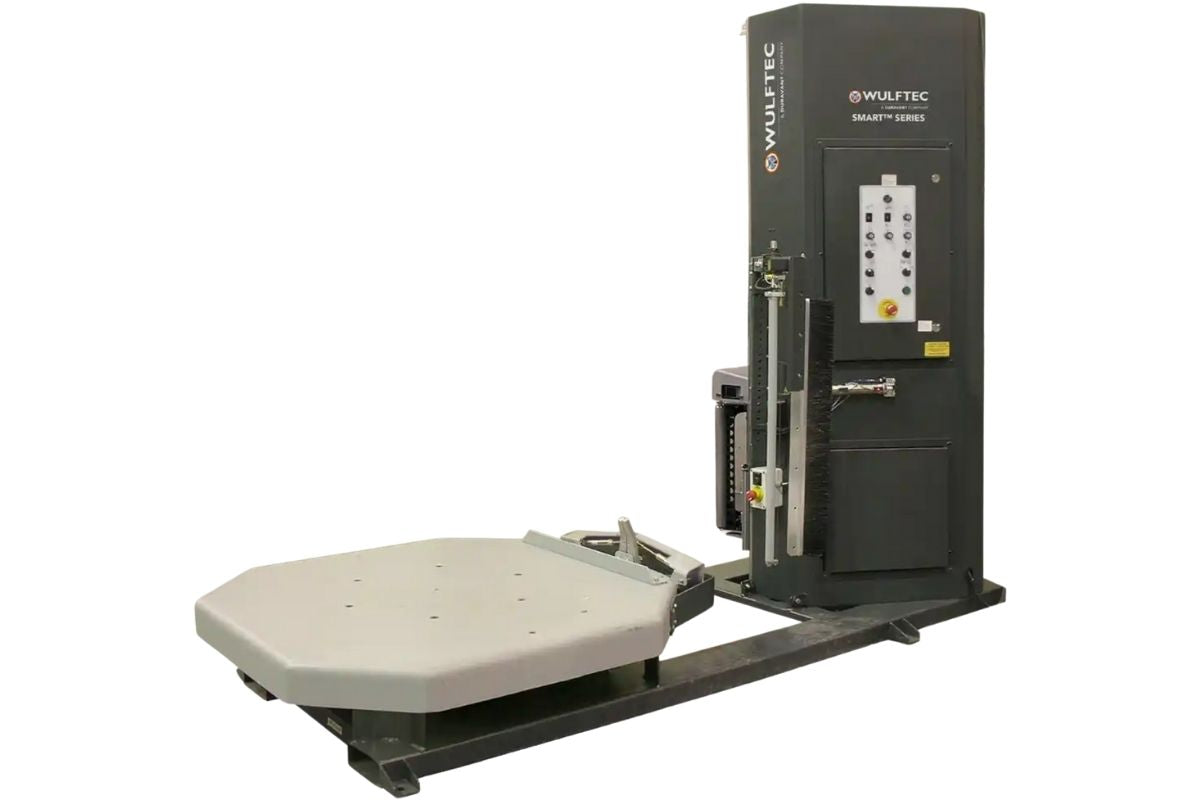

The SMHPA-200 model, a standard base high-profile turntable as the ideal stretch wrapping solution for your unique needs.

REQUEST A QUOTE View full details

Specifications

Production Rate 55 loads per hour
Machine Dimensions 109.5" L x 51" W x 99" H
Maximum Load Size 51" L x 51" W x 80" H
Load Weight 5000 lbs
Approximate Shipping Weight 1400 lbs
Electrical Requirements 120 V / 1 ph / 60 Hz / 15 A
Pneumatic Requirements 3 cfm @ 80 psi
Controls
  • Allen Bradley Micro800 Series PLC
  • 24V control system
  • Current overload protection
  • NEMA 4/12 control cabinet
  • Autoheight sensing photoeye
  • Power on/off switch and status light
  • Start/stop push button
  • Large emergency stop (push / pull type)
  • Manual carriage up/down function
  • Variable table speed (16 RPM) with automatic home position
  • Separate up/down carriage speeds adjustment
  • Separate top and bottom wrap selectors (0–9)
  • Reinforced wrap/manual rotation control
  • Film tension adjustment
  • Top cover pause switch (Splash proof program)
  • Mode switch (Manual or Automatic)
  • Pull cord with 40' of cable (to be installed by customer)
  • Separate station on front of tower with clamp jog and an additional e-stop
  • Lack of film alarm
Structure
  • 14 gauge formed steel tower
  • Forklift Portable base design
  • Heavy duty structural steel construction
Film Delivery System
  • 20" NO-THREAD® Powered Pre-Stretch Carriage
  • 1 HP AC motor with Allen Bradley variable frequency drive
  • Lifetime warranty on pre-stretch rollers blue compound
  • Film force release for easy pull at start and end of cycle
  • 50% to 300% pre-stretch ratio (preset to customer spec, Std 200%; capability up to 400% depending on film type)
  • Electronic film tension control with analog sensor
  • Film roping bar
  • Lexan roller cover for operator safety
  • Proximity sensor on carriage gate to ensure gate is properly closed
Film Tail Treatment
  • Automated Cut/Clamp & Wipe system
  • Pulse controlled cutter
  • Film alignment arm & Brush on film tail treatment
Film Carriage Drive
  • 1 HP AC motor with Allen Bradley variable frequency drive
  • Two #50 carriage lifting chains enclosed in tower for safety
  • Bearing supported maintenance free guide wheels
Turntable
  • 51" x 51" octagonal table 3/8" thick
  • 13 5/8" table height
  • 4 casters with polyurethane coating and tapered roller bearings
Turntable Drive
  • 0–16 RPM variable speed
  • 1 HP AC motor with Allen Bradley variable frequency drive
  • #50 ANSI heavy duty chain drive
  • Electronic soft start/stop
  • Positive turntable alignment controlled by proximity sensor
Technical Information The machine is provided with a manual including electro/mechanical schematics and drawings, troubleshooting guide & installation instructions
